        Crestron FlipTops

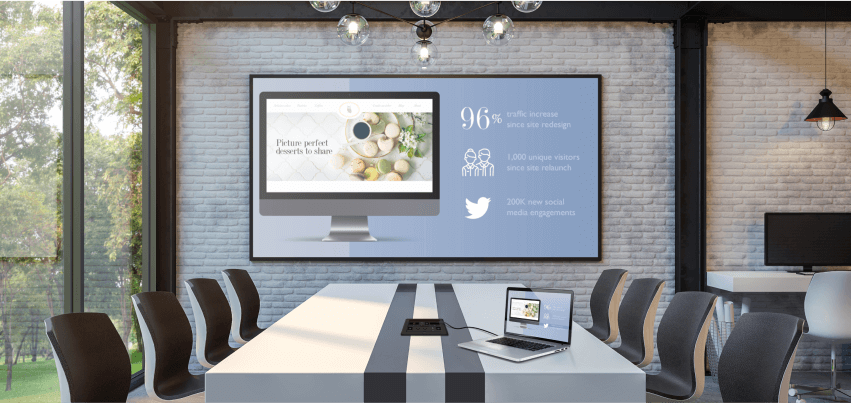

        Bring clean, convenient connectivity to the table

        Clear the table

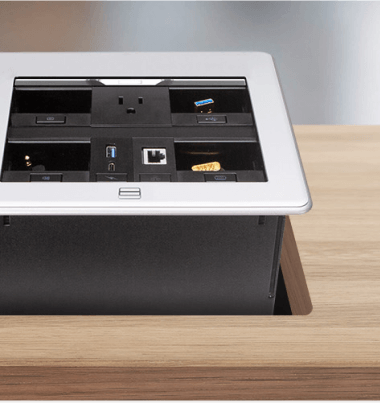

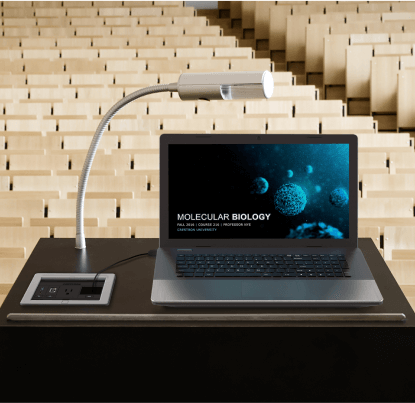

        FT2 Series FlipTop™ cable management systems make it simple to connect at a conference room table or lectern. All connections and cables are concealed inside beautiful drop-in industrial designs. And with their highly modular design, FT2 FlipTops can easily be configured and updated to meet the specific needs of any meeting space.

        Key features

        FT2 Series FlipTops are built to the same high standards as your most beautiful furnishings. No gaps or visible screws and the high-quality finishes complement any décor. All connections and cables are close to the surface and ready to use – no reaching into a dark hole.

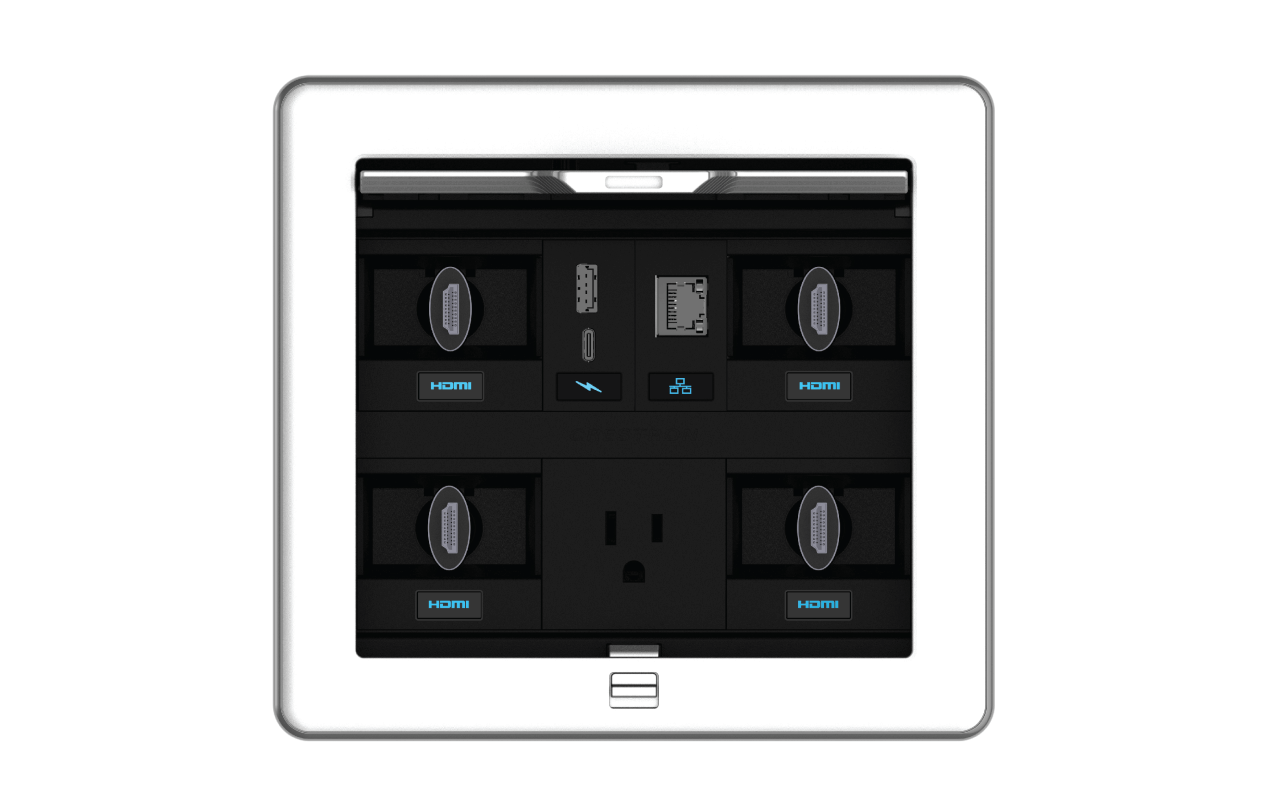

        Alloy

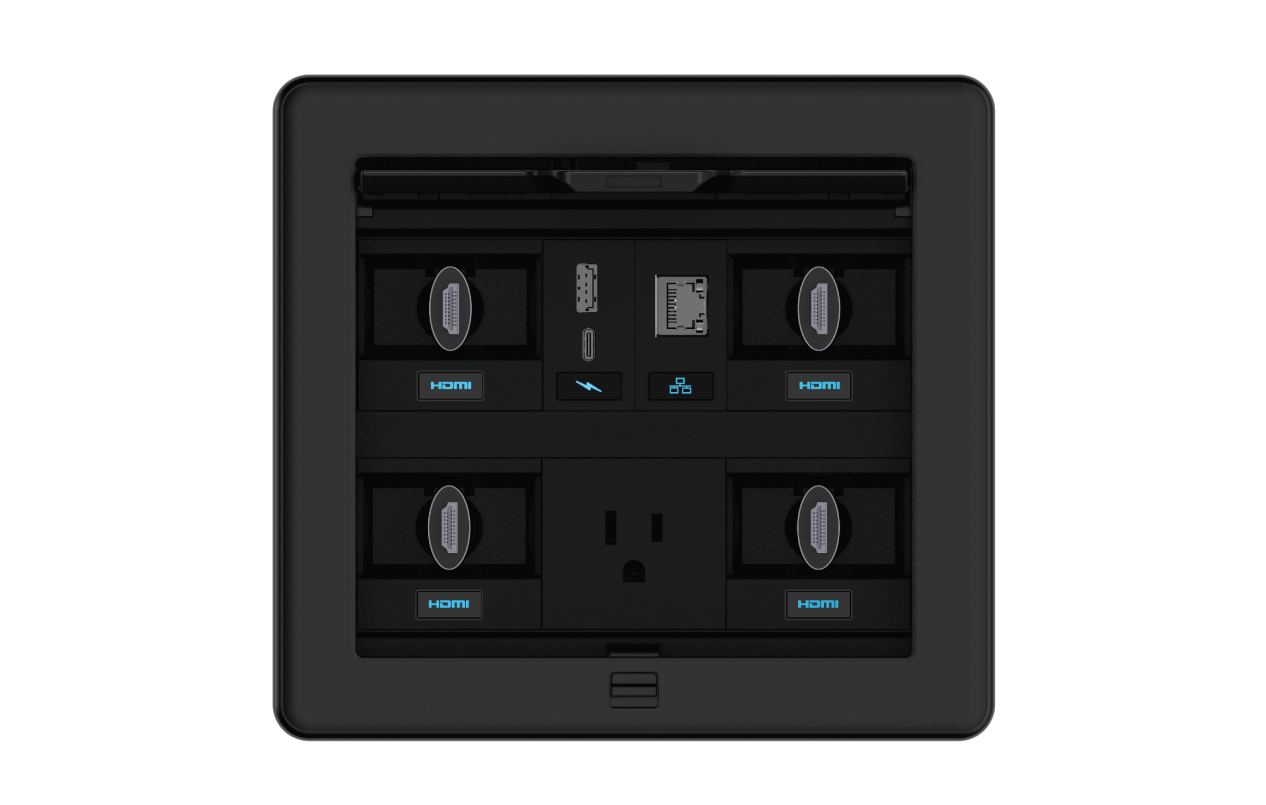

        Black

        Fast installation

        FT2 FlipTops are designed to fit in same industry standard cutout size as other major manufacturers and install and/or upgrade in a fraction of the time.


        See it in action

        A FlipTop to suit every space

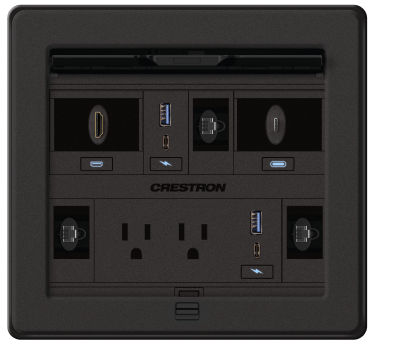

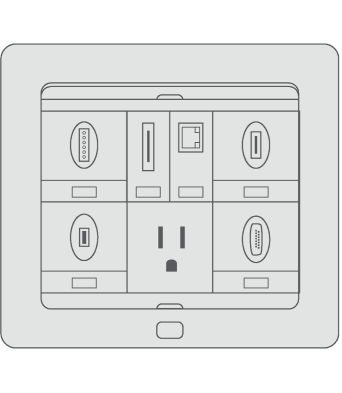

        Premium

        Active FlipTop. Supports USB-C charging modules, one-touch or vertical gravity retractors, pass-through lid, and all active 4K connector plates. All labels are backlit.

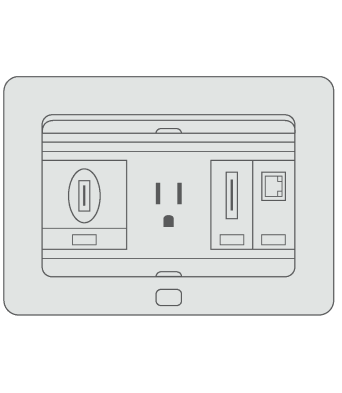

        Standard

        Passive FlipTop. Supports AC power, basic pass-through cables, pass-through lid, flush-mount connectors in keystone plates, and gravity retractors with their precision track and pulley mechanism.

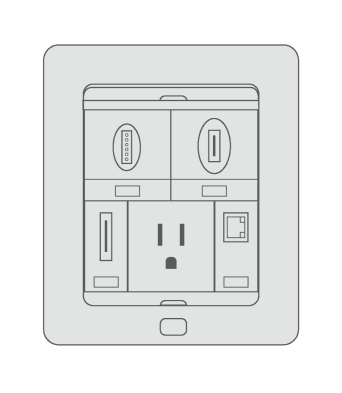

        Select the right size for your installation



        FT2-202
        FT2-500
        FT2-700
        FT2-1200
        FT2-1400


        Choose the right cables and connections

        Power Options


        USB-A / USB-C Charging
        • Active Only
        • Requires one slot


        US Power Modules
        • Active and Passive
        • Requires two, three, four slots


        International Power Modules
        • Active and Passive
        • Requires two slots
        Cable Management


        Pass-through Cables
        • Active and Passive
        • Requires one slot per cable


        Gravity Retractors
        • Active and Passive
        • Requires two slots


        One-touch Retractors
        • Active only
        • Requires two slots
        Connector Plates


        Keystone Connector Plates
        • Active and Passive
        • Cannot pass 4K@60Hz 4:4:4


        Active Connector Plates
        • Passive and Active
        • Preserves 4K@60Hz 4:4:4

        Gallery





        Resources

        Videos
        Active
        Passive
        AC Power Outlets
        USB-C and USB-A Rapid Charging
        Pass-through Cables
        Pass-through Lid
        Gravity Retractors
        (no backlit labels)
        One-touch Retractors
        Keystone Connector Plates
        Active Connector Plates

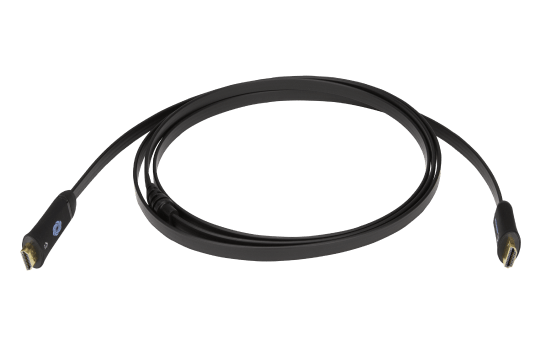

        Pass-through Cables

        A high-performance, purpose-built interface cable that can be pulled out smoothly for use and then dropped back into the FlipTop when done.

        Features:
        • Active and Passive
        • One slot per cable
        Available Options

        FT2A-PLT-PT-10: Cable Pass-Through Plate Modules, Qty. 10

        FT2A-CBL-PT-4K-HD: Pass-Through Cable, HDMI, 18 Gbps, 8 ft (2.4 m)

        FT2A-CBL-PT-4K-DP: Pass-Through Cable, DisplayPort, 18 Gbps, 8 ft (2.4 m)

        FT2A-CBL-PT-4K-DP-HD: Pass-Through Cable, DisplayPort to HDMI, 18 Gbps, 8 ft (2.4 m)

        FT2A-CBL-PT-4K-MDP-DP: Pass-Through Cable, Mini DisplayPort to DisplayPort, 18 Gbps, 8 ft (2.4 m)

        FT2A-CBL-PT-4K-MDP-HD: Pass-Through Cable, Mini DisplayPort to HDMI, 18 Gbps, 8 ft (2.4 m)

        FT2A-CBL-PT-4K-USBC-HD: Pass-Through Cable, USB Type-C to HDMI, 18 Gbps, 8 ft (2.4 m)

        FT2A-CBL-PT-VGA: Pass-Through Cable, VGA w/HD15 Male-to-Male, 8 ft (2.4 m)

        FT2A-CBL-PT-AUD: Pass-Through Cable, Mini-TRS Stereo Audio, 8 ft (2.4 m)

        FT2A-CBL-PT-CAT6: Pass-Through Cable, CAT6 w/RJ45, 8 ft (2.4 m)

        FT2A-CBL-PT-USB: Pass-Through Cable, USB Type-A Male-to-Male, 8 ft (2.4 m)

        Gravity Retractors

        A gravity-assisted track and pulley mechanism that allows up to 3' of cable to be pulled out smoothly for use, and then retract gently by lifting the cable vertically above the FlipTop.

        Features:
        • Active and Passive
        • Requires two slots
        • Extends 28.11” vertically down from top of the table
        Available Options

        FT2A-CBLR-GR-4K-HD: Gravity Cable Retractor, HDMI®, 18 Gbps

        FT2A-CBLR-GR-4K-DP: Gravity Cable Retractor, DisplayPort, 18 Gbps

        FT2A-CBLR-GR-4K-DP-HD: Gravity Cable Retractor, DisplayPort to HDMI, 18 Gbps

        FT2A-CBLR-GR-4K-MDP-DP: Gravity Cable Retractor, Mini DisplayPort to DisplayPort, 18 Gbps

        FT2A-CBLR-GR-4K-MDP-HD: Gravity Cable Retractor, Mini DisplayPort to HDMI, 18 Gbps

        FT2A-CBLR-GR-4K-USBC-HD: Gravity Cable Retractor, USB Type-C to HDMI, 18 Gbps

        FT2A-CBLR-GR-VGA: Gravity Cable Retractor, VGA w/HD15 Male-to-Male

        FT2A-CBLR-GR-AUDIO: Gravity Cable Retractor, Mini-TRS Stereo Audio

        FT2A-CBLR-GR-CAT6: Gravity Cable Retractor, CAT6 w/RJ45

        FT2A-CBLR-GR-USB: Gravity Cable Retractor, USB Type-A Male-to-Male FT2A-CP-4K-HD: Connector Plate, HDMI, 18 Gbps

        One-touch Retractors

        An electrically clutched, spring powered retraction mechanism that allows up to 5' of cable to be pulled out smoothly for use, and then retract with the touch of a button.

        Features:
        • Active only
        • Backlit labels
        • Requires two slots
        • Extends 11.58” vertically from the top of the table
        • Automatic retraction with control system
        Available Options

        FT2A-CBLR-1T-4K-HD: One-Touch Cable Retractor, HDMI, 18 Gbps

        FT2A-CBLR-1T-4K-DP: One-Touch Cable Retractor, DisplayPort, 18 Gbps

        FT2A-CBLR-1T-4K-DP-HD: One-Touch Cable Retractor, DisplayPort to HDMI, 18 Gbps

        FT2A-CBLR-1T-4K-MDP-DP: One-Touch Cable Retractor, Mini DisplayPort to DisplayPort, 18 Gbps

        FT2A-CBLR-1T-4K-MDP-HD: One-Touch Cable Retractor, Mini DisplayPort to HDMI®, 18 Gbps

        FT2A-CBLR-1T-4K-USBC-HD: One-Touch Cable Retractor, USB Type-C to HDMI, 18 Gbps

        FT2A-CBLR-1T-VGA: One-Touch Cable Retractor, VGA w/HD15 Male-to-Male

        FT2A-CBLR-1T-AUDIO: One-Touch Cable Retractor, Mini-TRS Stereo Audio

        FT2A-CBLR-1T-CAT6: One-Touch Cable Retractor, CAT6 w/RJ45

        FT2A-CBLR-1T-USB: One-Touch Cable Retractor, USB Type-A Male-to-Male

        Keystone Connector Plates

        Enables installation of standard flush-mount keystone connectors.

        Features:
        • Active and Passive
        • Cannot pass 4K@60Hz 4:4:4
        Available Options

        FT2A-PLT-BLANK-10: Blank Plate Modules, Qty. 10

        FT2A-PLT-KEY-10: Keystone Plate Modules, Qty. 10

        Active Connector Plates

        Offers a panel-mount interface solution. Each model is labeled with a backlit international symbol indicating the connection type, which is clearly visible to the user when selecting a connection at the table.

        Features:
        • Active only
        • Preserves 4K@60Hz 4:4:4
        Available Options

        FT2A-CP-4K-DP: Connector Plate, DisplayPort, 18 Gbps

        FT2A-CP-VGA: Connector Plate, VGA HD15 Female

        FT2A-CP-AUD: Connector Plate, Mini-TRS Stereo Audio

        FT2A-CP-AUD-RCA2: Connector Plate, RCA x2, White & Red

        FT2A-CP-VID-RCA1: Connector Plate, RCA, Yellow

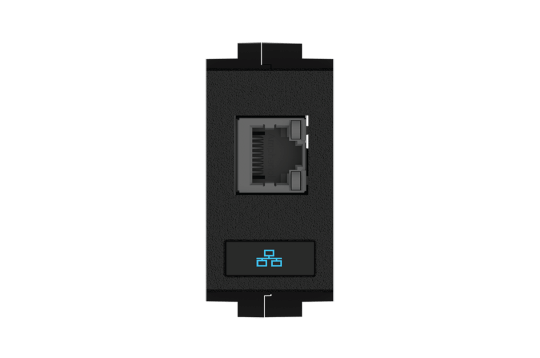

        FT2A-CP-RJ45: Connector Plate, RJ45

        FT2A-CP-USBA: Connector Plate, USB Type-A

        Single AC

        Provides one power outlet at the surface of the FlipTop. Available in a range US or international options.

        Features:
        • Active and Passive
        • Requires two slots
        Available Options

        FT2A-PWR-AU-1: AC Power Outlet Module, Single, Australia/New Zealand/ China, Type I

        FT2A-PWR-EU-1: AC Power Outlet Module, Single, European “Schuko”, Type F

        FT2A-PWR-FR-1: AC Power Outlet Module, Single, France/Belgium, Type E

        FT2A-PWR-IS-1: AC Power Outlet Module, Single, Israel, Type H

        FT2A-PWR-IT-1: AC Power Outlet Module, Single, Italy, Type L

        FT2A-PWR-SW-1: AC Power Outlet Module, Single, Switzerland, Type J

        FT2A-PWR-UK-1: AC Power Outlet Module, Single, UK, Type G

        FT2A-PWR-UN-1: AC Power Outlet Module, Single, Universal

        FT2A-PWR-US-1: AC Power Outlet Module, Single, US NEMA 5, Type B

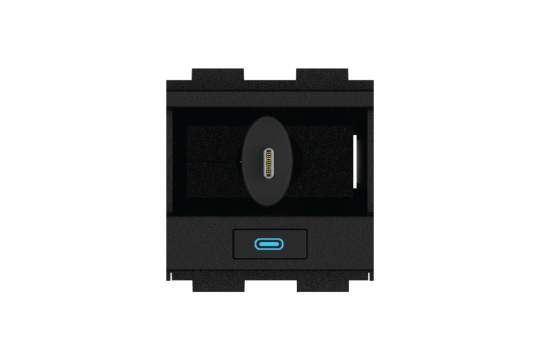

        USB-A/USB-C Charging

        Independent of AC configuration, it provides one USB Type-C charging port and one USB Type-A charging port, which can be used simultaneously to quickly charge mobile phones, laptops, or tablet devices at the table.

        Features:
        • Active only
        • Requires one slot (only one per row)
        Available Options

        FT2A-CHGR-USBA/C: USB Rapid Charging Module

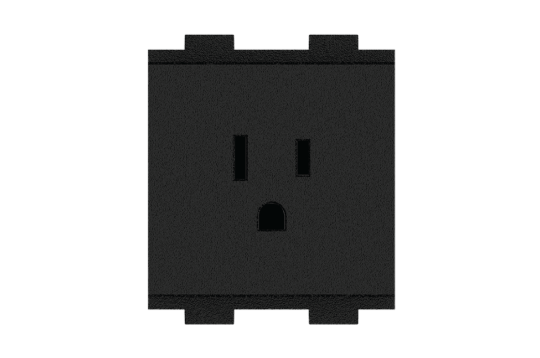

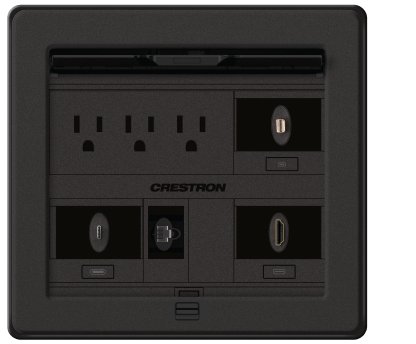

        US Power Modules

        Provides one, two, or three power outlets at the surface of the FlipTop.

        Features:
        • Active and Passive
        • Requires two, three, or four slots
        Available Options

        FT2A-PWR-US-1: AC Power Outlet Module, Single, US NEMA 5, Type B

        FT2A-PWR-US-2: AC Power Outlet Module, Dual, US NEMA 5, Type B

        FT2A-PWR-US-3: AC Power Outlet Module, Triple, US NEMA 5, Type B

        FT2A-PWR-US-1-BASIC: AC Power Outlet Module, Single, US NEMA 5, Type B

        International Power Modules

        Provides one power outlet at the surface of the FlipTop. Available in multiple international options.

        Features:
        • Active and Passive
        • Requires two slots
        Available Options

        FT2A-PWR-AU-1: AC Power Outlet Module, Single, Australia/New Zealand/ China, Type I

        FT2A-PWR-EU-1: AC Power Outlet Module, Single, European “Schuko”, Type F

        FT2A-PWR-FR-1: AC Power Outlet Module, Single, France/Belgium, Type E

        FT2A-PWR-IS-1: AC Power Outlet Module, Single, Israel, Type H

        FT2A-PWR-IT-1: AC Power Outlet Module, Single, Italy, Type L

        FT2A-PWR-SW-1: AC Power Outlet Module, Single, Switzerland, Type J

        FT2A-PWR-UK-1: AC Power Outlet Module, Single, UK, Type G

        FT2A-PWR-UN-1: AC Power Outlet Module, Single, Universal

        FT2A-PWR-AU-2: AC Power Outlet Module, Dual, Australia/New Zealand/ China, Type I

        FT2A-PWR-EU-2: AC Power Outlet Module, Dual, European “Schuko”, Type F

        FT2A-PWR-FR-2: AC Power Outlet Module, Dual, France/Belgium, Type E

        FT2A-PWR-IS-2: AC Power Outlet Module, Dual, Israel, Type H

        FT2A-PWR-IT-2: AC Power Outlet Module, Dual, Italy, Type L

        FT2A-PWR-SW-2: AC Power Outlet Module, Dual, Switzerland, Type J

        FT2A-PWR-UK-2: AC Power Outlet Module, Dual, UK, Type G

        FT2A-PWR-UN-2: AC Power Outlet Module, Dual, Universal
